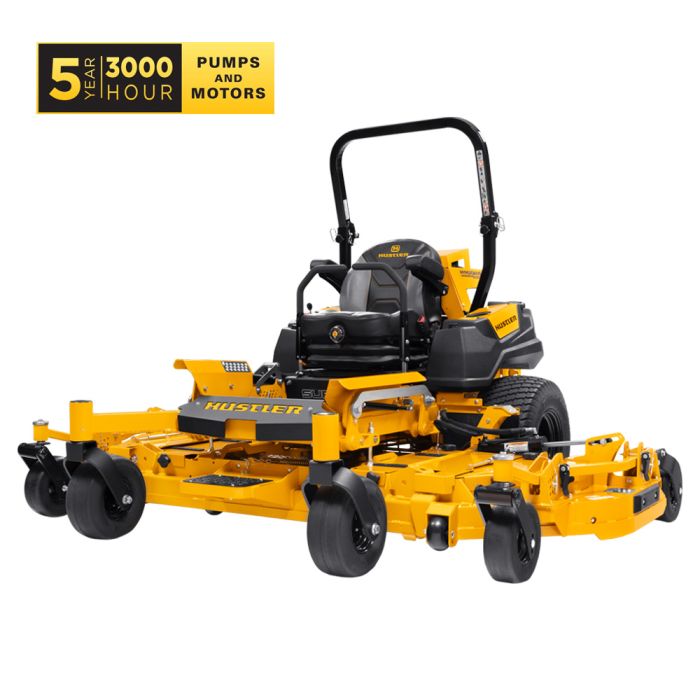

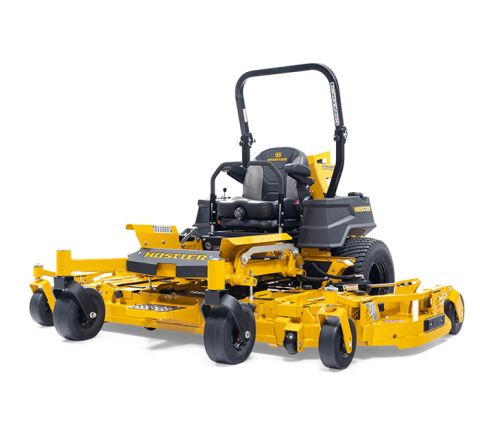

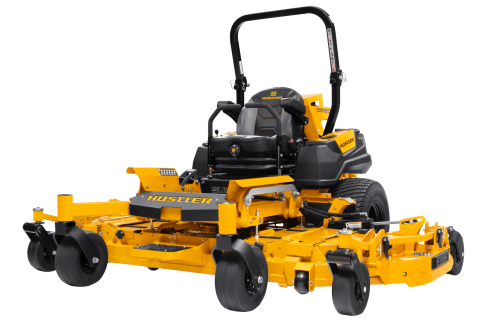

With its fast 17.7 km/h ground speed and huge 104" mowing width, the Hustler Super 104 delivers immense productivity.
Complete with hydraullic fold-up deck for easy transport, the Super 104 is a flexible wide area mowing solution for commercial and fleet mowing contractors.
A true no-compromise wide area Zero Turn mower, the Hustler Super 104 delivers unrivalled productivity.
Offering a fast 17.7 km/h ground speed and huge 104" mowing width, the Hustler Super 104 cuts more grass in less time, while the industrial grade hydro transmissions, and huge 44.3L fuel tank, mean you can stay in the seat mowing for longer and get more done than you ever thought possible.
Operator comfort is second to none with a deluxe high back suspension seat, effortless hydraullic deck lift, SmoothTrak Steering and handy oversized cup holder ensuring every shift is a comfortable one.
With a cutting deck that folds up to an 80" width for for easy site access and transport, the Super 104 also offers immense flexibility, with it's ability to be loaded onto a standard 7" wide tandem trailer and towed with a standard ute or van.
The Hustler Super 104 is simply an essestial machine for any large area mowing contractor who wants a stress free solution for getting more mowing done in less time.
* Images are for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.
104 Inch Cutting Deck. Fabricated 11 Gauge steel with reinforced trim. 4 x supporting castor wheels and anti-scalp rollers.
Blades & PTO
5 Blades with electric PTO blade engagement
Spindles
Cast iron with 7 gauge steel spindle mounts and 1" steel shaft. Greasable, with double lip sealed ball bearings.
Cutting Height & Adjustment
1" - 5.5" cutting range with hydraullic powered deck height adjustment
Optional Extras
Optional Mulch Kit
Productivity & Capability
Ground Speed
17.7 Km/h Ground Speed
Acres per hour
9.2 Acres per hour (Rating based on 80% efficiency to allow for real world mowing conditions)
Fuel Tank Capacity
44.3 L
Slope Capability
15 Degrees
Power & Drive Train
Engine Type & Specifications
38.5HP Kawasaki FX1000V-EFI Engine. Air cooled. 999cc.
Engine Warranty
3 Year Engine Warranty
Transmission Type & Specifications
Dual Danfoss DDC-20 Hydro Transmissions
Wheel Motors
Parker TG0360 Wheel Motors
Build & Chassis
Country of Manufacture
Made in the USA
Chassis Construction
1.5" x 3" Welded Tubular Steel Frame
Roll Over Protection
Standard Roll Over Protection Bar
Rear Wheels & Tyres
26" x 12" Rear Tyres
Front Wheels, Tyres & Castors
15" x 6" Front Tyres
Comfort & Convenience
Seat Type
Deluxe High Back I3M Suspension Seat with Armrests
Console Features
Cup Holder
Park Brake
Automatic Park Brake
Maintenance Access
Open rear design for easy engine maintenance
Tow Hitch
Optional Tow Hitch
Dimensions
Minimum Trailer Size
7 ft wide, 9 ft Long
Length
2426 mm
Width (Chute up)
2032 mm (Wings up), 2695 mm (Wings down / Chute up)
Height (ROPS up & down)
1816 mm (ROPS up). 1372 mm (ROPS down)
Weight
1134 kg
Warranty
Residential Warranty
5 Year / 500 Hr Domestic warranty
Commercial Warranty
2 Year, No Hour Limit Commercial Warranty
Disclaimer
Specifications subject to change without notice and without incurring obligation. Images for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.
Reducing the temperature of the oil in your wheel motors is key to extending the life of your hydraulic system. Hustler’s exclusive HyperDrive system helps do just that with temperature regulation and tough components designed to keep your mower at peak performance.
Wide Area Mowing
Hustler's Super 104™ can easily handle acres of work. Offering a 104" width of cut, zero-turn precision and up to an impressive 11 mph speed, this machine is in a class by itself.
Wings Fold To 80"
80" transport width fits most trailers helping to make it easy to transport from job-to-job.
