Reducing the temperature of the oil in your wheel motors is key to extending the life of your hydraulic system. Hustler’s exclusive HyperDrive system helps do just that with temperature regulation and tough components designed to keep your mower at peak performance. Featuring a 5-year / 3,000-hour limited warranty** on the hydraulic system (warranty available on the HyperDrive mower only).
warranty*
SIX Reasons The Hyperdrive System is industrial

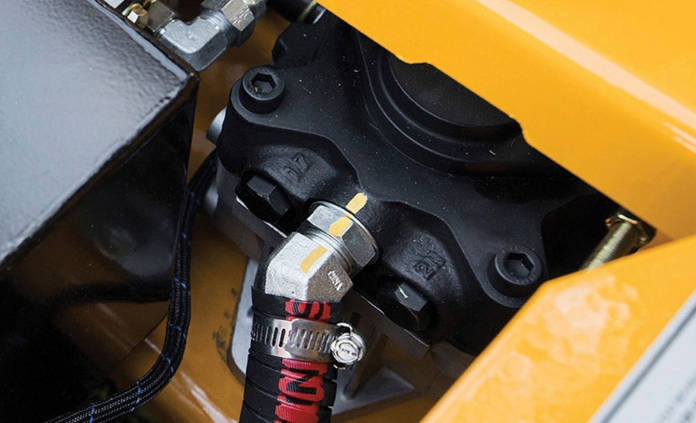

1 Industrial-Grade Slipper Piston Pumps
Danfoss DDC-20. Two variable displacement, industrial-grade, over sized slipper piston pumps. Each pump powers one drive-wheel. All stainless-steel, high-pressure lines with Parker SealLok™ O-Ring flat face fittings.

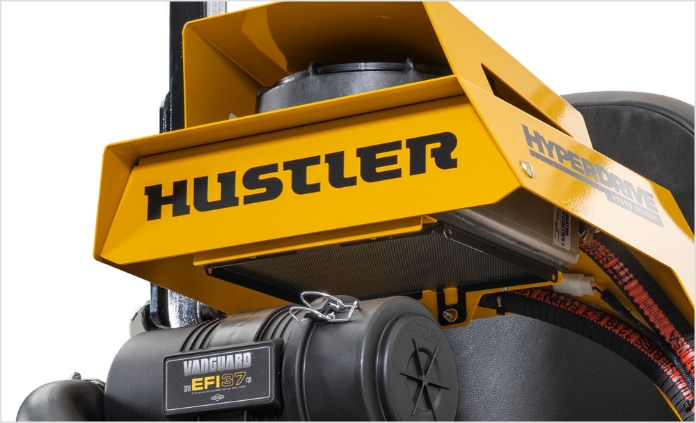

2 Oil Cooler
Full-flow high capacity 3” thick, 10” x 10” aluminum oil cooler with filter screen. (located underneath the fan)
3 Fan
12 volt, 9” fan with an integrated directional shroud. Pulls air through 100% of the oil cooler.
4 Reservoir
Large 3 US gal.(11.36 L) with internal high micron cartridge filter and drain plug for easy maintenance and a cooler, cleaner running, longer life system.
5 Wheel Motors
Parker premium TG extra high-torque. Patented extra heavy-duty torque link with a 60:40 spline geometry for industrial strength reliability and performance with larger axle, shafts and bearings.
6 Hot Oil Shuttle
Wheel motors have an added pressurized line that shuttles hot oil directly to the cooling system, regulating temperatures for increased life and performance. Industry exclusive feature.
