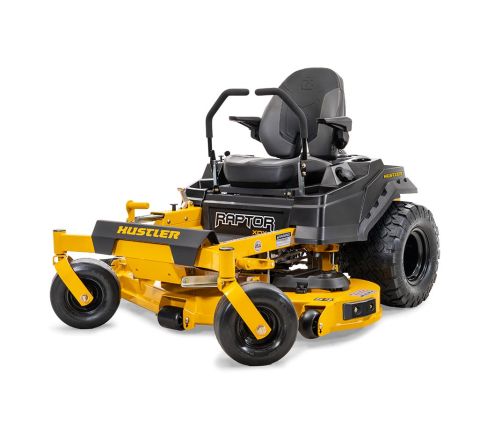

Raptor XDX 54

In stock

An incredibly flexible and capable machine the Raptor XDX series offers commercial grade features and a range of deck sizes to suit a wide variety of commercial mowing applications, as well as land owners looking for commercial grade reliability.

  • 54" Cutting Width
  • 3.5 Acres per Hour
  • 24HP Kawasaki Engine
  • 3 Year, 400 Hour Commercial Warranty
In stock
Print Page

Introducing the Hustler XD 54 - the ultimate solution for your lawn care needs!
This zero turn mower is built to withstand even the toughest mowing conditions, making it the perfect choice for land owners and mowing contractors alike.

Equipped with a powerful 23HP Kawasaki V-Twin engine, the Hustler XD 54 effortlessly mows your lawn in no time.
Its comfortable high-back seat and padded armrests ensure that you can mow for extended periods without feeling fatigued.

Featuring a foot-operated deck lift system, adjusting the cutting height is now effortless. You can easily adapt to changes in terrain and grass length, without leaving your seat.

The Hustler XD 54 boasts unparalleled manoeuvrability, thanks to its zero turn radius. You can easily navigate around obstacles and turn in tight spaces, making it perfect for various residential and commercial applications.

The intuitive control panel puts all the necessary functions within reach, allowing you to focus on the task at hand and complete the job quickly.

With a sturdy steel frame, tough 54 inch fabricated cutting deck, and a 3 year commercial warranty, the Hustler XD 54 is built to last.

Maintenance is a breeze with the removable foot pan, providing easy access to the belts and pulleys.

Experience the difference that the Hustler XD 54 zero turn mower can make in your lawn care routine, and enjoy a more comfortable and effortless mowing experience!


* Images are for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.


Cutting Equipment & Features
Deck Width & Construction
54 Inch 10 Gauge Fabricated Cutting Deck
Blades & PTO
3 Blades with electric PTO blade engagement
Aluminium with 11 gauge spindle mounts, 1" shaft and double lip sealed ball bearings
Cutting Height & Adjustment
1.5" - 4.5" cutting range with foot assisted deck height adjustment
Optional Extras

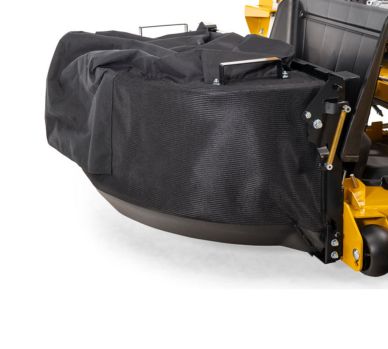

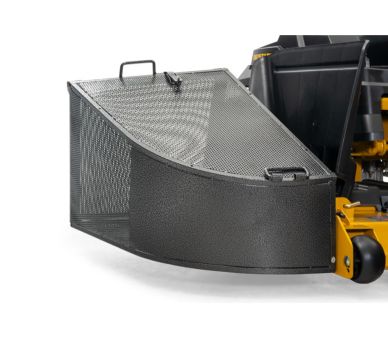

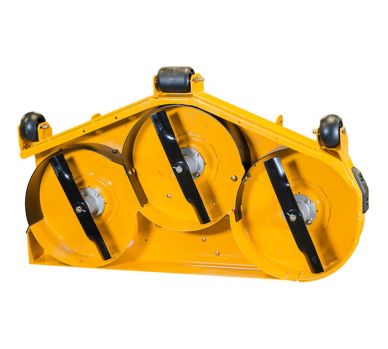

Optional Mulch Kit, Optional Catcher Kit
Productivity & Capability
Ground Speed
12.9 Km/h Ground Speed
Acres per hour
3.5 Acres per hour (Rating based on 80% efficiency to allow for real world mowing conditions)
Fuel Tank Capacity
11 L
Slope Capability
15 Degrees
Power & Drive Train
Engine Type & Specifications
24HP Kawasaki FR730V Engine. Air cooled. 726cc.
Engine Warranty
3 Year Engine Warranty
Transmission Type & Specifications
Dual Hydro Gear ZT3100 Hydro Transmissions
Build & Chassis
Country of Manufacture
Made in the USA
Chassis Construction
1.5" x 3" Welded Tubular Steel Frame
Rear Wheels & Tyres
22" x 11" Rear Tyres
Front Wheels, Tyres & Castors
13" x 6.5" Front Tyres
Comfort & Convenience
Seat Type
Bolstered Extra High Back Seat with Armrests
Console Features
Cup Holder
Park Brake
Automatic Park Brake

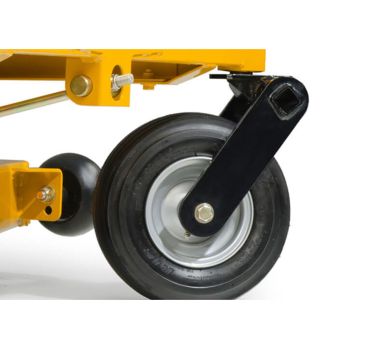

Optional Flex Fork Front Suspension
Maintenance Access
Open rear design for easy engine maintenance
Tow Hitch
Optional Tow Hitch
Minimum Trailer Size
5 ft wide, 7 ft Long
1806 mm
Width (Chute up)
1448 mm (Chute up)
Height (ROPS up & down)
1110 mm
308 kg
Residential Warranty
3 Year / 400 Hr Domestic warranty
Commercial Warranty
3 Year / 400 Hr Commercial Warranty
Specifications subject to change without notice and without incurring obligation. Images for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.
Fabricated Cutting Deck

All Hustler mowers feature a welded steel fabricated cutting deck. No thin stamped decks here. With deck rollers to greatly reduce the chance of heavy impacts over bumpy terrain, Hustler cutting decks are built to last a lifetime.

SmoothTrak Steering

Glide around obstacles with ease and keep on the straight and narrow. Standard on all Hustler mowers, SmoothTrak Steering reduces jerkiness and makes precises steering inputs easier than ever. Mow like a pro with Hustler!
