Raptor XDX 48

In stock

The Raptor XDX has commercial-grade features like a 10-gauge fabricated deck, cast steel deck hangers, vented and toolless removable pulley covers, and reaches up to 8mph with Hydro-Gear® ZT-3100® commercial transmissions.

The 5-inch-deep deck is designed to allow for mowing through thick grass at top speeds.

  • 48" Cutting Width
  • 3.1 Acres per Hour
  • 23HP Kawasaki Engine
  • 3 Year, 400 Hour Commercial Warranty
In stock
Print Page

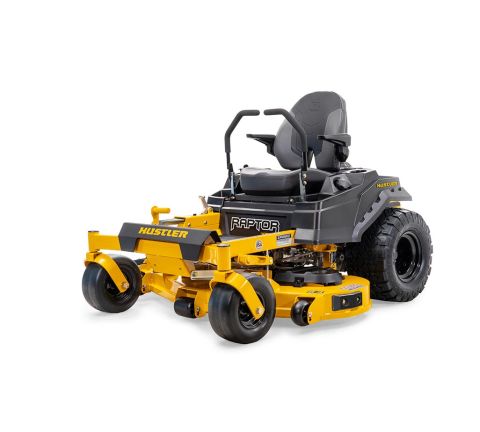

Introducing the Hustler Raptor XDX 48, the ultimate lawn care machine that offers toughness, reliability, and comfort all in one!

Powered by a 23HP Kawasaki V-Twin engine, this mower effortlessly takes on any mowing challenge, making lawn care a breeze.

The high-back seat and padded armrests provide maximum comfort, enabling you to mow for extended periods without feeling fatigued. The foot-operated deck lift system allows you to adjust the cutting height while seated, making it effortless to adapt to changes in terrain and grass length.

With its zero turn radius, the Raptor XDX 48 offers exceptional manoeuvrability, allowing you to effortlessly navigate around obstacles and turn in tight spaces. Its intuitive control panel puts all the necessary functions within reach, allowing you to focus on the task at hand and complete the job quickly.

With a tough steel frame and commercial grade 48-inch fabricated cutting deck, the Raptor XDX 48 is a durable machine built to last.  Backed by a 3 year commercial warranty, the Raptor XDX 48 is suited to both demanding property owners and commercial lawn mowing contractors

Its removable foot pan provides easy access to the belts and pulleys, simplifying maintenance.

Experience the Hustler Raptor XDX 48, the ultimate zero turn mower that makes lawn care a comfortable and effortless experience.

* Images are for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.


Cutting Equipment & Features
Deck Width & Construction
48 Inch 10 Gauge Fabricated Cutting Deck
Blades & PTO
3 Blades with electric PTO blade engagement
Aluminium with 11 gauge spindle mounts, 1" shaft and double lip sealed ball bearings
Cutting Height & Adjustment
1.5" - 4.5" cutting range with foot assisted deck height adjustment
Optional Extras
Optional Mulch Kit, Optional Catcher Kit
Productivity & Capability
Ground Speed
12.9 Km/h Ground Speed
Acres per hour
3.1 Acres per hour (Rating based on 80% efficiency to allow for real world mowing conditions)
Fuel Tank Capacity
11 L
Slope Capability
15 Degrees
Power & Drive Train
Engine Type & Specifications
23HP Kawasaki FR691V Engine. Air cooled. 726cc.
Engine Warranty
3 Year Engine Warranty
Transmission Type & Specifications
Dual Hydro Gear ZT3100 Hydro Transmissions
Build & Chassis
Country of Manufacture
Made in the USA
Chassis Construction
1.5" x 3" Welded Tubular Steel Frame
Rear Wheels & Tyres
22" x 9.5" Rear Tyres
Front Wheels, Tyres & Castors
13" x 6.5" Front Tyres
Comfort & Convenience
Seat Type
Bolstered Extra High Back Seat with Armrests
Console Features
Cup Holder
Park Brake
Automatic Park Brake
Optional Flex Fork Front Suspension
Maintenance Access
Open rear design for easy engine maintenance
Tow Hitch
Optional Tow Hitch
Minimum Trailer Size
5 ft wide, 7 ft Long
1806 mm
Width (Chute up)
1285 mm (Chute up)
Height (ROPS up & down)
1110 mm
293 kg
Residential Warranty
3 Year / 400 Hr Domestic warranty
Commercial Warranty
3 Year / 400 Hr Commercial Warranty
Specifications subject to change without notice and without incurring obligation. Images for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.
Fabricated Cutting Deck

All Hustler mowers feature a welded steel fabricated cutting deck. No thin stamped decks here. With deck rollers to greatly reduce the chance of heavy impacts over bumpy terrain, Hustler cutting decks are built to last a lifetime.

SmoothTrak Steering

Glide around obstacles with ease and keep on the straight and narrow. Standard on all Hustler mowers, SmoothTrak Steering reduces jerkiness and makes precises steering inputs easier than ever. Mow like a pro with Hustler!
