Raptor X 54

In stock

The legendary Raptor X packs all the performance and reliability Hustler is known for into a simple and durable design. We engineer our mowers to be maintenance and service friendly. From the frame to the deck to our trademark steering, the Raptor X delivers excellent cut quality for a well manicured lawn. We’ve put thousands of hours of R&D and testing into the Raptor Series, which is why it’s backed by a 3yr / 300hr limited warranty.

  • 54" Cutting Width
  • 3 Acres per Hour
  • 23HP Kawasaki Engine
  • 3 Year, 300 Hour Residential Warranty
In stock
Print Page

Tackle large lawns and properties with the powerful Hustler Raptor X 54 Zero Turn Mower.

Featuring a huge 54-inch cutting deck, this machine can handle even the largest of lawns with ease.

Powered by a reliable 23 horsepower Kawasaki V-Twin engine, the Hustler Raptor X 54 boasts dual Hydro-Gear ZT-2200 transmissions that provides exceptional control and manoeuvrability.

Ergonomic controls, comfortable high-back seat, and foot-operated deck lift system make it easy to operate and customize the mowing height to your preferences.

Built with durability in mind, this mower is designed with a sturdy steel frame and welded steel fabricated deck, ensuring it can withstand years of use.

With its impressive specifications at an affordable price point, the Hustler Raptor X 54 is the ultimate solution for anyone looking for a high-performance zero turn mower.

Say goodbye to endless hours of mowing and hello to a smooth and effortless lawn mowing experience!

* Images are for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.


Cutting Equipment & Features
Deck Width & Construction
54 Inch 11 Gauge Fabricated Cutting Deck
Blades & PTO
3 Blades with electric PTO blade engagement
Aluminum with 7 gauge spindle mounts, 1” shaft and double lip sealed ball bearings
Cutting Height & Adjustment
1.5" - 4.5" cutting range with foot assisted deck height adjustment
Optional Extras

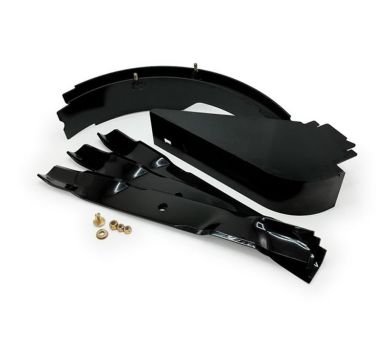

Optional Mulch Kit, Optional Catcher Kit
Productivity & Capability
Ground Speed
11.3 Km/h Ground Speed
Acres per hour
3 Acres per hour (Rating based on 80% efficiency to allow for real world mowing conditions)
Fuel Tank Capacity
11 L
Slope Capability
15 Degrees
Power & Drive Train
Engine Type & Specifications
23HP Kawasaki FR691V Engine. Air cooled. 726cc.
Engine Warranty
3 Year Engine Warranty
Transmission Type & Specifications
Dual Hydro Gear ZT2200 Hydro Transmissions
Build & Chassis
Country of Manufacture
Made in the USA
Chassis Construction
1.5" x 3" Welded Tubular Steel Frame
Rear Wheels & Tyres
18" x 10.5" Rear Tyres
Front Wheels, Tyres & Castors
11" x 6" Front Tyres
Comfort & Convenience
Seat Type
Bolstered Mid Back Seat with Armrests
Console Features
Cup Holder
Park Brake
Automatic Park Brake
Optional Flex Fork Front Suspension
Maintenance Access
Open rear design for easy engine maintenance
Tow Hitch
Optional Tow Hitch
Minimum Trailer Size
5 ft wide, 6 ft Long
1793 mm
Width (Chute up)
1488 mm (Chute up)
Height (ROPS up & down)
1036 mm
256 kg
Residential Warranty
3 Year / 300 Hr Domestic warranty
Specifications subject to change without notice and without incurring obligation. Images for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.
Fabricated Cutting Deck

All Hustler mowers feature a welded steel fabricated cutting deck. No thin stamped decks here. With deck rollers to greatly reduce the chance of heavy impacts over bumpy terrain, Hustler cutting decks are built to last a lifetime.

SmoothTrak Steering

Glide around obstacles with ease and keep on the straight and narrow. Standard on all Hustler mowers, SmoothTrak Steering reduces jerkiness and makes precises steering inputs easier than ever. Mow like a pro with Hustler!
