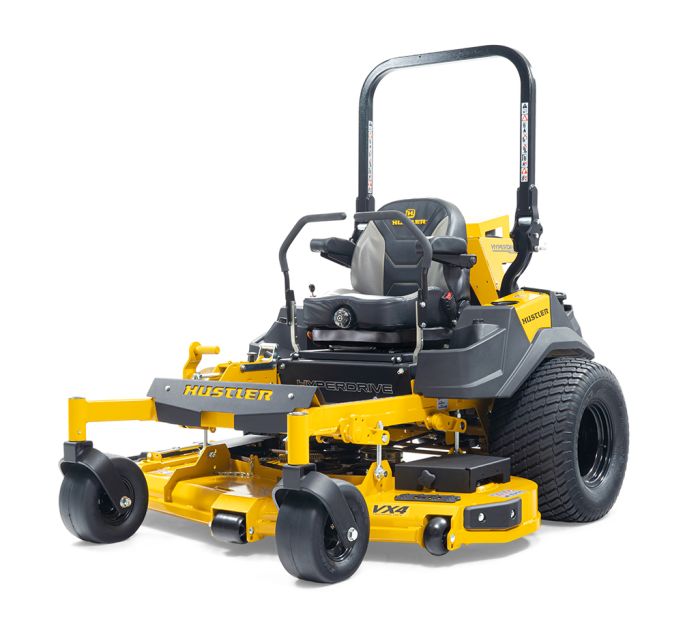

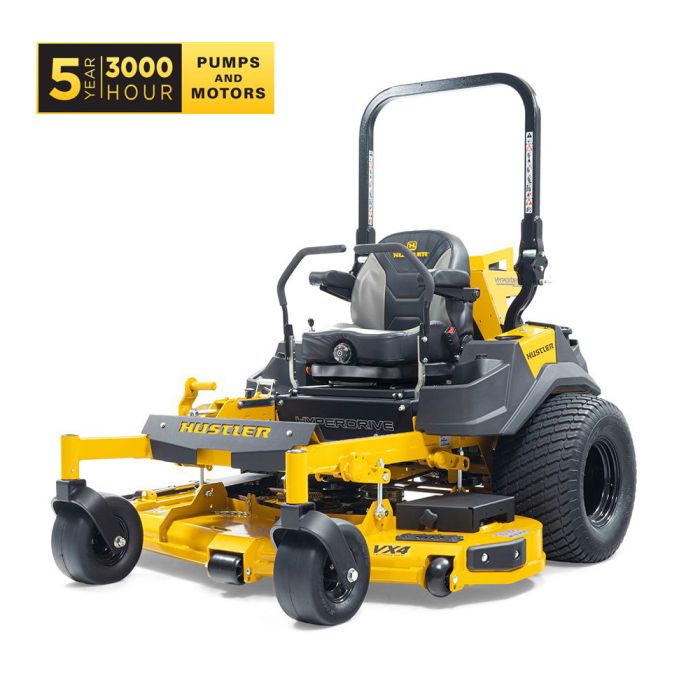

Power meets productivity with the Hustler Super Z Series Commercial Zero Turn mowers.
With groundspeed up to an amazing 25.7 km/h the Super Z HD 72 gets the job done fast, while the huge 45L fuel tank means less stopping and more mowing.
Power meets productivity with the Hustler Super Z Series Commercial Zero Turn mowers.
With groundspeed up to an amazing 25.7 km/h the Super Z HD 72 gets the job done fast, while the huge 45L fuel tank means less stopping and more mowing.
Fast groundspeed combined with a 72" cutting deck offers super flexibility, making this model suited to both wide area applications and jobs where a narrower more nimble machine is required.
VX4 Deck technolgy puts Hustler a cut above, delivering real world advantages to cut quality and speed.
The Hustler VX4 deck is engineered for extreme vacuum. The deck more efficiently draws grass and leaves up into the mower blades resulting in a consistent cut for all grass types including thin dry grass.
Hustler's HyperDrive system ensures long term reliability and performance, with industrial grade hydro transmissions and temperature regulation to keep you going all day in hot conditions when others would give up.
Operator comfort is paramount with a deluxe high back suspension seat, SmoothTrak Steering and handy oversized cup holder ensuring every shift is a comfortable one.
* Images are for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.
Cast iron with 7 gauge steel spindle mounts and 1" steel shaft. Greasable, with double lip sealed ball bearings.
Cutting Height & Adjustment
1" - 5.5" cutting range with foot assisted deck height adjustment
Optional Extras
Optional Mulch Kit, Optional Catcher Kit
Productivity & Capability
Ground Speed
25.7 Km/h Ground Speed
Acres per hour
9.3 Acres per hour (Rating based on 80% efficiency to allow for real world mowing conditions)
Fuel Tank Capacity
45 L
Slope Capability
15 Degrees
Power & Drive Train
Engine Type & Specifications
36HP Kawasaki FX1000V Engine. Air cooled. 999cc.
Engine Warranty
3 Year Engine Warranty
Transmission Type & Specifications
Dual Danfoss DDC-20 Hydro Transmissions
Wheel Motors
Parker TG280 Wheel Motors
Build & Chassis
Country of Manufacture
Made in the USA
Chassis Construction
1.5" x 3" Welded Tubular Steel Frame
Roll Over Protection
Standard Roll Over Protection Bar
Rear Wheels & Tyres
26" x 14" Rear Tyres
Front Wheels, Tyres & Castors
13" x 6.5" Front Tyres
Comfort & Convenience
Seat Type
Deluxe High Back I3M Suspension Seat with Armrests
Console Features
Cup Holder
Park Brake
Automatic Park Brake
Maintenance Access
Open rear design for easy engine maintenance
Tow Hitch
Optional Tow Hitch
Dimensions
Minimum Trailer Size
7 ft wide, 8 ft Long
Length
2337 mm
Width (Chute up)
1981 mm (Chute up)
Height (ROPS up & down)
1867 mm (ROPS up). 1214 mm (ROPS down)
Weight
794 kg
Warranty
Residential Warranty
5 Year / 500 Hr Domestic warranty
Commercial Warranty
2 Year, No Hour Limit Commercial Warranty
Disclaimer
Specifications subject to change without notice and without incurring obligation. Images for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.
Reducing the temperature of the oil in your wheel motors is key to extending the life of your hydraulic system. Hustler’s exclusive HyperDrive system helps do just that with temperature regulation and tough components designed to keep your mower at peak performance.
VX4 Cutting Deck
The VX4 Deck combines four performance features to help provide a quick, clean, and professional looking cut: Versatility, Velocity, Vacuum and Volume. The combination allows professionals to move grass through the deck efficiently and consistently.
